GSM/4G Door Gate Opener Wireless Remote Switch Controller SMS Relay Controller

MODEL: WH-200
GSM Frequency: Quad-band 850/900/1800/1900MHz
Power consumption: 12V input Max. 50mA/Average 25mA
Exterior dimension: 61.5x 85x 25 MM
Description: GSM/4G Door Gate Opener Wireless Remote Switch Controller SMS Relay Controller
Inquiry

Description:

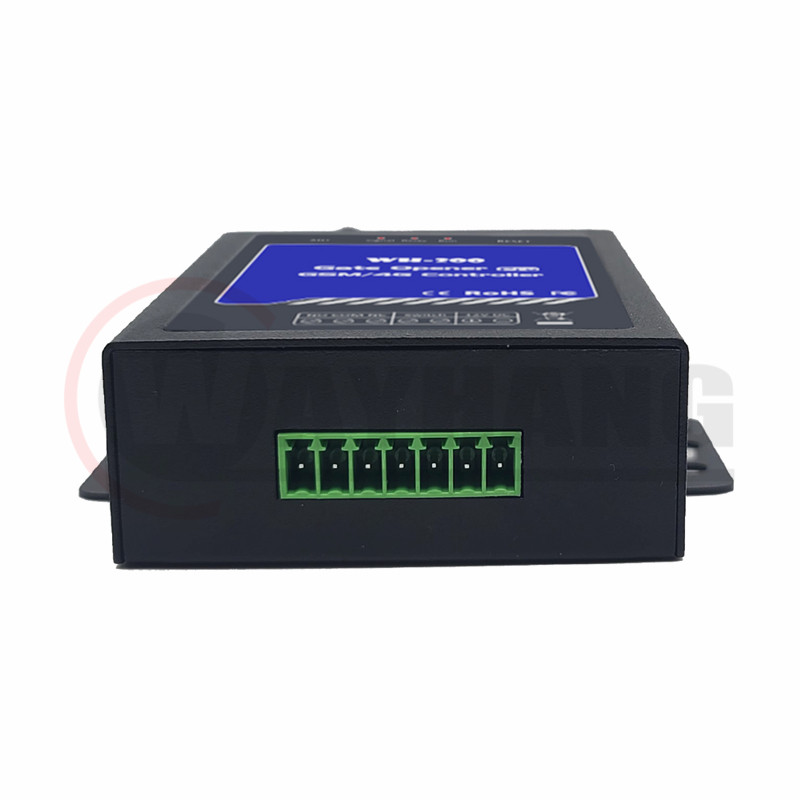

WH-200 is a new designed Smart Wireless Gate controller.
It could be well integrated with most of the electronic locks, gate motors, gate operators.
And it is widely used in residential, institutional, industrial markets.
You'll need it.

Features:
GSM network communication, no distance limitation, can be used anywhere.
Works with a Nano SIM card, users could dial the SIM card number to open the door.
No phone charges, no distance limits, no keyfobs.
More convenient and friendly than any other solutions.

Specifications:
GSM / 4G Frequency
GSM: quad-band 850 / 900 / 1800 / 1900MHzor 4G
DC power: DC 9V – 36V/1A
Power consumption: max 50mA / average 25mA
SIM card: nano type, 3V
Antenna: 50Ω SMA
Relay specification: 3A/250V AC, 20A/14V DC
Relay type: NO/NC
Relay time: max 0 - 900s
Wired switch: supports
Operating temp: - 10 - 60 Deg. C
Relative humidity: 10 - 90% (RH)

Please Note:
Notice: The power adapter and push button are NOT included. The default device only support GSM.

Package List:
1 x Controller, 1 x Antenna, 1 x Terminal
