Features :

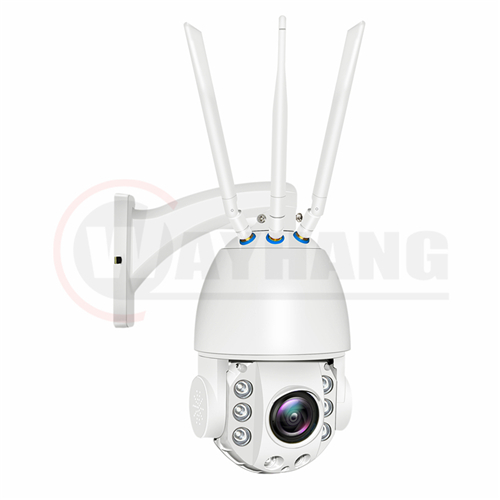

SIM 4G Camera
4.5 Inch Super Mini PTZ Dome Camera
Support Full Color Night Vision (Remote Control For CamHi APP)
4.7-94mm 20 X Optical Zoom Auto Focus Lens
Support HD 1080P High Quality Resolution
6pcs Array IR Infrared LEDs +2pcs White Supplement Light,80m Night Vision
Built-in Microphone,Support Two Way Audio Talk Back(With Loud Speaker)
Support TF/Micro SD card, up to 128G(Don't included TF Card)
The SD Card Slot Is Designed On The Camera's Back Cover,Very Easy to Install the TF/Micro SD Card
Pan tilt rotation, horizontal:355 Deg & vertical:90 Deg
Support P2P, view & anywhere & anytime
Provide android & ios APP (CamHi) and professional CMS PC client software
Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m
Metal Housing Material,Outdoor Use,Waterproof IP66
Specifications:
|
Products Model |
WH-Q8A-CAM-4G-2.0MP |
|
Operating system |
Embedded Linux OS |
|
Effective pixels |
HD 1080P(1920*1080) |
|
Lens interface type |
M12 |
|
Lens |
4.7-94mm 20X Optical Zoom |
|
View angle |
68.5°-4.2° |
|
Min.illumination |
0.05Lux / 0 Lux(IR on) |
|
Day&Night mode |
Auto IR-CUT |
|
Night vision distance |
6pcs Array IR Infrared LEDs +2pcs White Supplement Light,80m Night Vision |
|
Video compression standard |
H.264 Main Profile/H.264 Baseline |
|
Video streaming |
Dual streaming |
|
Video resolution |
First stream: 1080P(1920x1080), 720P(1280x720) |
|
Second stream: Q720P(640x480/640x352), QQ720P(320x240/320x176) |
|
|
JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176) |
|
|
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
|
Video frame rate |
20fps(PAL 50HZ). 20fps(NTSC 60HZ) |
|
Audio |
Audio compression standard: G.726/G.711 |
|
Audio code rate: Rate adaptive |
|
|
Audio Input: Support, Built-in Microphone |
|
|
Audio Output: Support Two Way Audio Talk Back(With Loud Speaker) |
|
|
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
|
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
|
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the specified mailbox, |
|
alarm upload pictures and videos to the FTP server, |
|
|
alarm write pictures and videos to Micro TF card, alarm message push |
|
|
Privacy mask |
Maximum support 4 users to simultaneously browse |
|
OSD |
Support camera name, date and time information superimposed |
|
User management |
Supports user and rights management |
|
Simultaneous viewers |
maximum support 12 users to simultaneously browse (each stream supports 4 users) |
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, |
|
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. |
|
|
4G standard |
FDD-LTE |
|
Frequency range |
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) |
|
Transmission rate |
Upload max:50Mbps, download max: 150Mbps |
|
Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Rotation angle |
Horizon:0° to 355°. Vertical: 0° to 90° |
|
Horizontal speed |
1° to 40°/S |
|
Vertical speed |
1° to 20°/S |
|
Power interface |
1*5.5mm power interface |
|
Ethernet |
N/A |
|
TF card Slot |
1*TF card slot. up to 128GB (Don't included TF Card) |
|
Reset button |
Support |
|
Power supply |
DC 12V 2A |
|
power |
Day: 3W; Night: 12W |
|
Operating temperature |
-20 to +60 degree |
|
Operating humidity |
10% to 95% |
|
Material |
Metal Housing ,Outdoor Use,Waterproof IP66 |
|
Installation |
Rack mounting |
|
Size(W*D*H)(mm) |
239*137*215 |
|
Weight(kg) |
1.45kg |
|
Package Size(W*D*H)(mm) |
295*285*160 |
|
Package Weight(kg) |
2.15kg |
Packing List:
1*SIM 4G Dome Speed Camera Built-in Mic (Don't included TF Card)
1*Loud Speaker
1*Power Supply
1*CD & Manual
1*Screws Bag
3*Antenna
